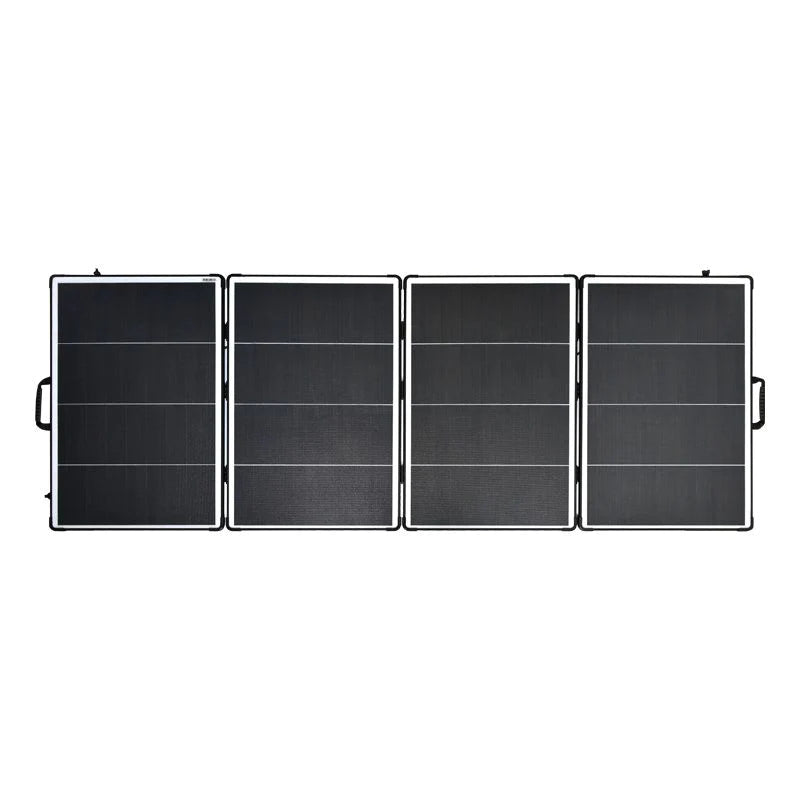

FLEXOPOWER FOLDABLE SOLAR PANEL KALAHARI-400 HI-VOLT

Charge power stations and MPPT camping systems with a higher voltage.

Hi-Volt. Perfect for all portable power stations where solar input is capped at 10A and for all MPPT camping systems for a powerful solar charge.
Teflon (ETFE) module encapsulation - Best encapsulation for portable solar panels.
Shingled solar cell technology - More power per m2 and better suited against losses from partial shading.

Features:

• Hi-Volt means Vmp of 36.5V rated at 400W. The majority of portable power stations are limited to max. 10A solar input. Conventional 12V solar panels quickly exceed this limitation, its input capped and slower to re-charge. Whereas the Kalahari400 input is not capped, ensuring a faster re-charge.
• Hi-Volt means Vmp of 36.5V rated at 400W. Means an improved battery charge for campers with a quality MPPT charge controller. The MPPT is stepping down the Kalahari400 voltage to the camper's battery voltage. This increased voltage differential improves the efficiency of the MPPT as compared to a conventional 12V panel. Higher voltage also reduces the voltage loss in cabling.
• Hi-Volt means not suitable for PWM charge controllers.
• Shingled solar cells are connected in groups and configured in parallel, greatly reducing losses from partial shading (other panels typically have their cells wired in series, causing significant losses if part of the panel is shaded).
• Shingled solar cells reduce the spacing between the cells, no silver metal strips running across the panel, reducing the footprint of the panel. Smaller panel = less packing space.

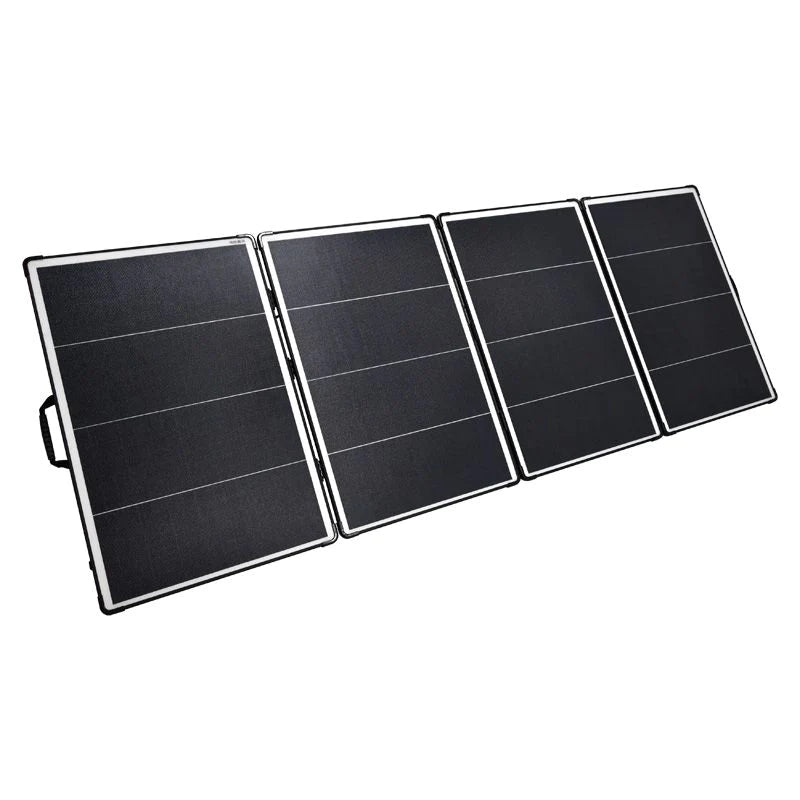

• Supporting legs: collapsible supporting legs angle the solar panels at 45 degrees against the sun for improved solar harvesting, especially during winter months and low sun settings.
• Quality assurance: each solar panel has its own unique serial number making it traceable through the entire manufacturing and QC process.

Specifications:

• STC Rated Output: 400W
• Max. Operating Voltage, Vmp: 36.5V
• Open Circuit Voltage, Voc: 43.1V
• Operating Current, Imp: 11.0A
• Max. System Voltage: 200V
• Weight: 12.6kg
• Encapsulation: Teflon (ETFE)
• Solar Cells: mono-crystalline PERC, shingled, 22% efficiency
• Dimensions, folded: 900 x 590 x 90 mm
• Dimensions, unfolded: 2360 x 900 x 25 mm

Warranty:

5 Years on manufacturing

Included:

1 x 400W foldable solar panel with grey Anderson connector
